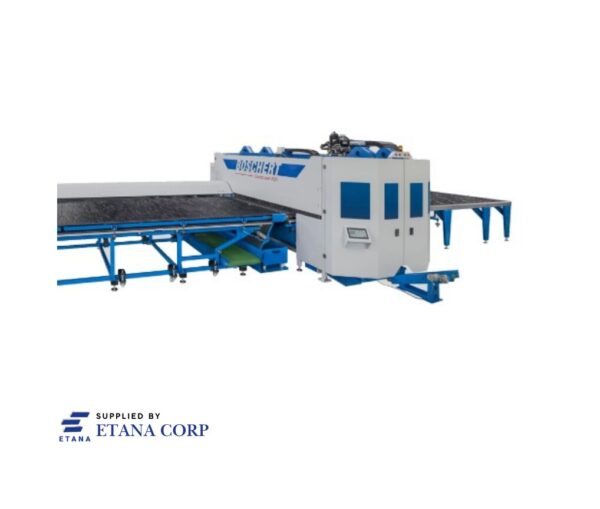

Boschert Boost Production with the CombiLaser 4020 – Etana Corp

$100.00

Benefits:

1. Single-Machine Versatility: Punching, forming, and laser cutting are completed on one robust platform, eliminating machine transfers.
2. Large Format Processing: Sheets up to 4000 x 2000 mm (≈13 ft x 6.5 ft) are processed without mandatory repositioning.
3. Integrated Forming: Deep forming, tapping, and beading operations are handled directly alongside cutting, using vertically adjustable dies.
4. High Productivity: A high-speed hydraulic system delivers punching rates up to 750 strokes/minute, complementing the laser's rapid cutting speed.
5. Massive Tool Capacity: An automatic tool changer holds up to 96 tools, ensuring maximum autonomy and minimal operator intervention.

Applications & Industries:

1. Heavy Machinery: Used for large enclosure panels, brackets, and structural components that require both precision holes (punched) and complex outer profiles (laser cut).
2. Electrical/Electronics: Fabrication of large control cabinets, server racks, and distribution boards where forming, dimpling, and thread-tapping are often required.
3. Job Shops and Contract Manufacturing: Due to its flexibility, the machine is ideal for high-mix production, allowing quick changeovers between different materials and processes.
4. Transportation: Manufacturing parts for rail, bus, and truck bodies where high-precision cutting is paired with forming features.

Technical Specifications:

Specification Details
Max. Sheet Working Area 4000 × 2000 mm (≈157 in × 78 in)
Max. Punching Force 280 kN (≈31 Tons)
Fiber Laser Power 1 kW to 4 kW options
Max. Mild Steel Cut 12 mm (with 4 kW laser)
Punching Rate (Max.) 750 strokes/min
Axis Positioning Speed (Combined) Up to 85 m/min
Positioning Accuracy ±0.10 mm
Tooling System Trumpf® Style

Why Choose Us

Expert Support: Our team of experienced technicians provides comprehensive assistance, from initial consultation to after-sales support. We help you choose the right Boschert Boost Production with the CombiLaser 4020 - Etana Corp machine for your business needs.
Proven Quality: Our machines are built with high-quality components, ensuring reliability, durability, and consistent performance for years to come.
Customer-Centric Service: We focus on building lasting relationships. Our dedicated support team is always ready to assist you with installation, training, and troubleshooting.
Immediate Availability: We maintain a ready stock of machines and spare parts, minimizing wait times and ensuring you can get back to business quickly if a part is needed.
Call us today for an instant response — your upgrade starts here.

Get Started Today:

Ready to transform your production? We encourage you to get a personalized quote and speak with an expert about your specific needs.
1. Request a Quote: Click here to fill out our simple online form. We will provide a detailed quote tailored to your business requirements.
2. Call Us for an Instant Response: For immediate assistance and answers to your questions, call us directly at (877) 235-6655.

FAQ:

What is the main advantage of combining punching and laser cutting?
Combining these two processes allows for greater design flexibility and faster cycle times. Simple contours and features (like standard holes, threads, and forms) are quickly punched or formed, while complex, intricate shapes are laser cut with precision. This prevents bottlenecks and optimizes material utilization.

Can the CombiLaser handle thick materials?
Yes. The machine’s maximum sheet thickness is 12.7 mm for punching (with special clamps), while the 4 kW fiber laser can cut mild steel up to 12 mm and stainless steel up to 12 mm.

How are small finished parts managed on the machine?
Finished parts from both the punching and laser processes are efficiently managed. The machine is equipped with programmable part chutes that quickly dispose of small, finished workpieces into sorting trays, which minimizes manual material handling.

Is the laser system safe for the operator?
Safety is prioritized in the machine's design. A comprehensive security setup was developed in cooperation with professional associations, and the fiber laser is protected by a safety cover. An optional full machine enclosure is available to ensure complete operator safety.
