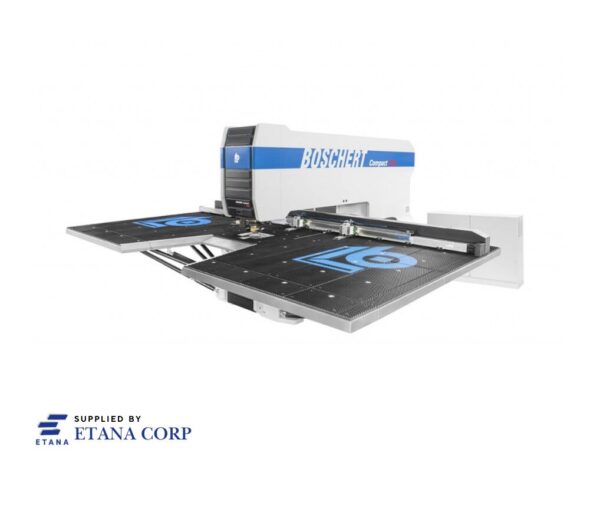

Boschert Compact EVO Frontal – CNC Punching Machine

$100.00

1. Rapid Processing: Achieves up to 800 strokes per minute for fast nibbling operations.
2. High Precision: Positioning is maintained with exceptional accuracy (±0.10 mm), ensuring repeatable quality.
3. Tool Versatility: The Trumpf® tooling system and multi-station RevoTool simplify complex contours and reduce setup time.
4. Low Noise Operation: The redesigned frame and integrated oil lines significantly dampen noise, creating a quieter work environment.
5. Integrated Functions: Complex tasks like tapping, forming, and deburring are integrated directly into the machine process.

1. Electrical Manufacturing: Used to produce precise components for electrical switchgear, distribution boards, and industrial cabinets.
2. General Fabrication: Handles diverse punching, nibbling, and forming jobs on sheets up to 12.7 mm thick.
3. HVAC Systems: Used for manufacturing specialized vents, frames, and enclosure components.
4. Job Shops: The machine's flexibility and quick tool changes make it perfect for high-mix, low-volume production.

SpecificationDetails
Max. Hydraulic Punching Power280 kN (31 Tons)
Max. Sheet Thickness12.7 mm (0.5 inches)
Max. Punching Diameter105 mm (4.13 inches)
Max. Strokes (Nibbling)800 strokes/min
Max. Sheet Length9,999 mm (with repositioning)
Axes Positioning Accuracy±0.10 mm
Standard Tooling SystemTrumpf®

Expert Support: Our team of experienced technicians provides comprehensive assistance, from initial consultation to after-sales support. We help you choose the right Boschert Compact EVO Frontal - CNC Punching Machine for your business needs.
Proven Quality: Our machines are built with high-quality components, ensuring reliability, durability, and consistent performance for years to come.
Customer-Centric Service: We focus on building lasting relationships. Our dedicated support team is always ready to assist you with installation, training, and troubleshooting.
Immediate Availability: We maintain a ready stock of machines and spare parts, minimizing wait times and ensuring you can get back to business quickly if a part is needed.
Call us today for an instant response — your upgrade starts here.

Ready to transform your production? We encourage you to get a personalized quote and speak with an expert about your specific needs.
1. Request a Quote: Click here to fill out our simple online form. We will provide a detailed quote tailored to your business requirements.
2. Call Us for an Instant Response: For immediate assistance and answers to your questions, call us directly at (877) 235-6655.

How is high accuracy maintained during operation?
High accuracy is maintained by the solid welded steel construction and the use of widely spaced ball screws and linear guides. This robust design guarantees consistent positioning accuracy and repeatability even during high-speed nibbling.

What is the primary function of the RevoTool system?
The RevoTool system is designed to minimize tool change time. It allows up to eight different tools to be kept in a single station. Due to this innovation, tool changes are completed in just 2-4 seconds.

Can the machine process material other than simple punching?
Absolutely. This machine is equipped to handle complex metalworking. Forming, tapping, and marking are all possible with the appropriate optional attachments, integrating multiple post-punching processes into one automated flow.

Is this machine difficult for new users to operate?
No. The machine is often recommended for entry-level CNC fabrication. A powerful graphic and conversational software ensures that programming is kept simple and fast, enabling quick adoption by operators.

How does the "frontal" design affect material loading?
The frontal design typically allows for easier and more ergonomic loading and unloading of large or pre-bent sheets. An L-sheet is also provided for working with very small or difficult-to-handle pieces.
