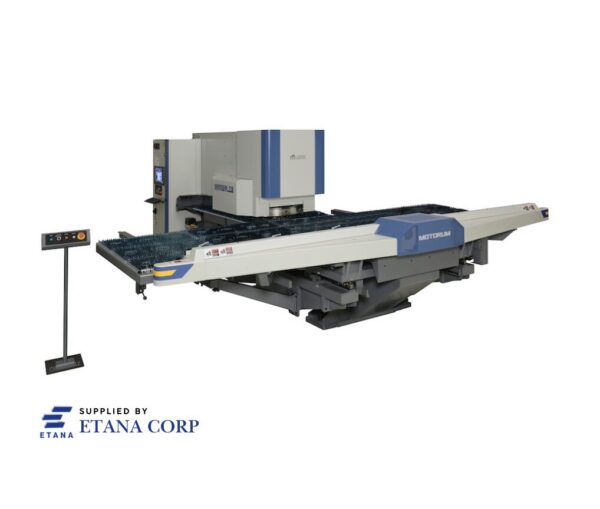

What type of RAM drive does the Motorum M2048TS use?
This machine utilizes a highly rigid, servo-driven ram axis, which provides precise control over the punching stroke. This design is what enables its high hit rates, energy efficiency, and reduced noise.
Can this machine handle forming operations?
Yes. It offers optimum control of ram speed for fast and accurate forming of the highest quality. Optional features like a Retractable Forming Die function eliminate interference with the workpiece during movement.
What is the maximum sheet size I can process?
Without repositioning, you can process sheets up to 1,250 mm x 2,500 mm. With a single reposition, you can extend the sheet size up to 1,250 mm x 5,000 mm, accommodating very large jobs.
How does the machine conserve energy?
The servo-electric drive is an eco-friendly design that only draws power when the ram is actively punching. This precise energy management results in substantial energy conservation and lower running costs compared to older mechanical or hydraulic models.
What is the benefit of the Brush Table?
The brush table reduces friction, which minimizes scratching on the underside of the sheet metal during movement. It also helps reduce noise and provides stable support for the worksheet.
